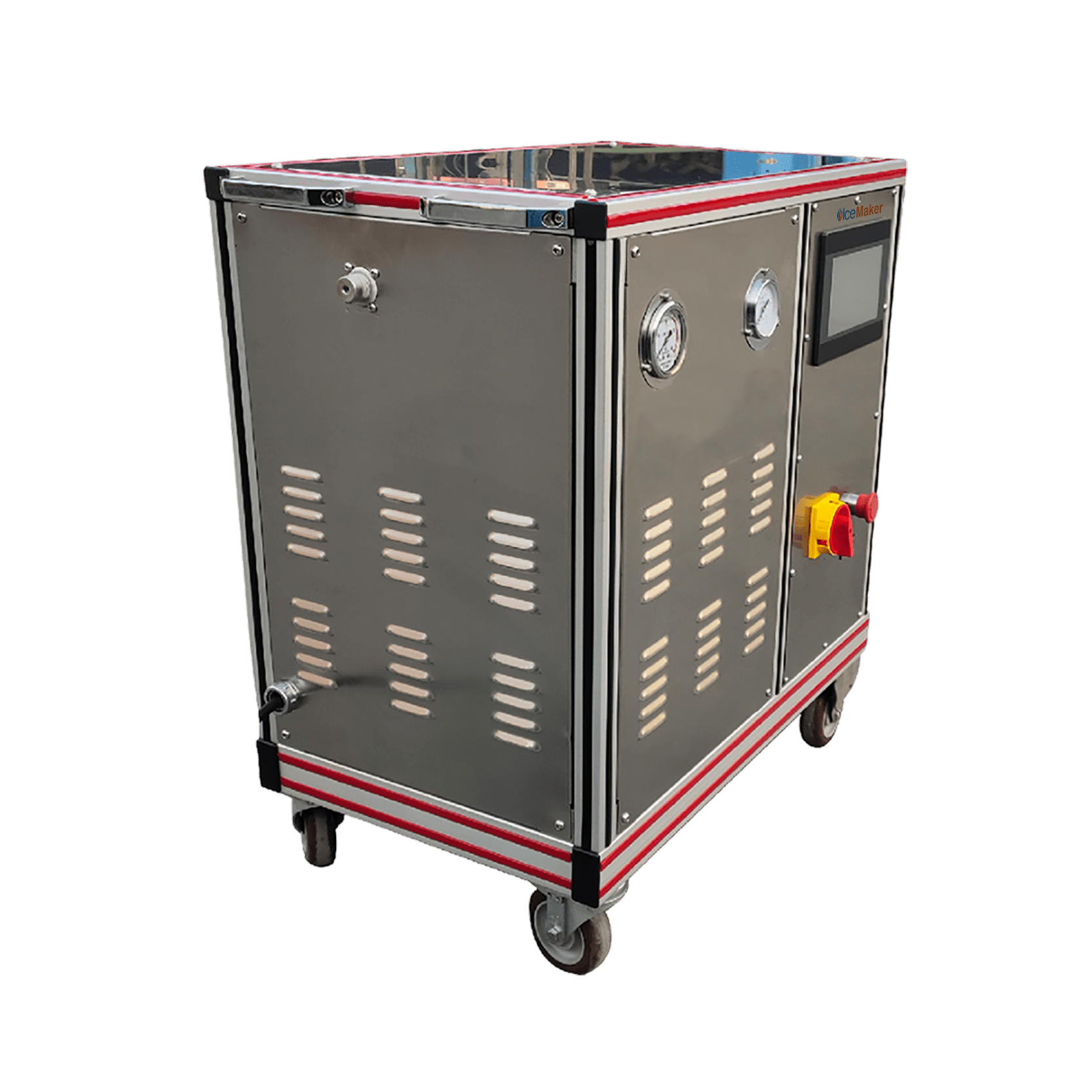

Dry Ice Maker DPIM-A10 features a single extrusion head and produces 20 to 30 kgs of dry ice per hour. It generates pellets of size 3mm ensuring uniform shape, high sublimation efficiency, and enhanced cooling performance. Our dry ice maker is equipped with a touch screen for real-time monitoring and navigating parameters. It delivers highly dense dry ice ensuring optimal blasting performance.
Specifications
| Capacity | 20 to 30 Kg/h |
|---|---|
| Dry Ice Size Mold | 3mm |
| Dry Ice Quality | ≥1.5 ton/m³ |
| Transformation Rate | ≥38% |
| Liquid Inlet Pressure | ≤2.1 MPa |
| Power Consumption | 2.2 kW |
| Power Supply | 380V/50-60Hz |
| Dimension | 730 × 435 × 780 mm |
| Weight | 130 kg |
Features
• Crafted with 304L stainless steel
• High conversion rate
• Easy manual mold change
• Integrated with pressure-regulating valve
Applications
Dry Ice Maker is a compact and efficient device designed to produce dry ice and utilized in Medical & Pharmaceuticals, food & beverage industries, laboratories & research, manufacturing & automotive, electronics & aerospace.
Standard accessories
| Accessories | Quantity |
| Sealing Rings | 1 Set |
| Nuts | 1 Set |
| Connection Hose | 1 Piece |
| Working Gloves | 2 Pairs |
| Ice Shovel | 1 Piece |
Optional accessories
9mm mold
