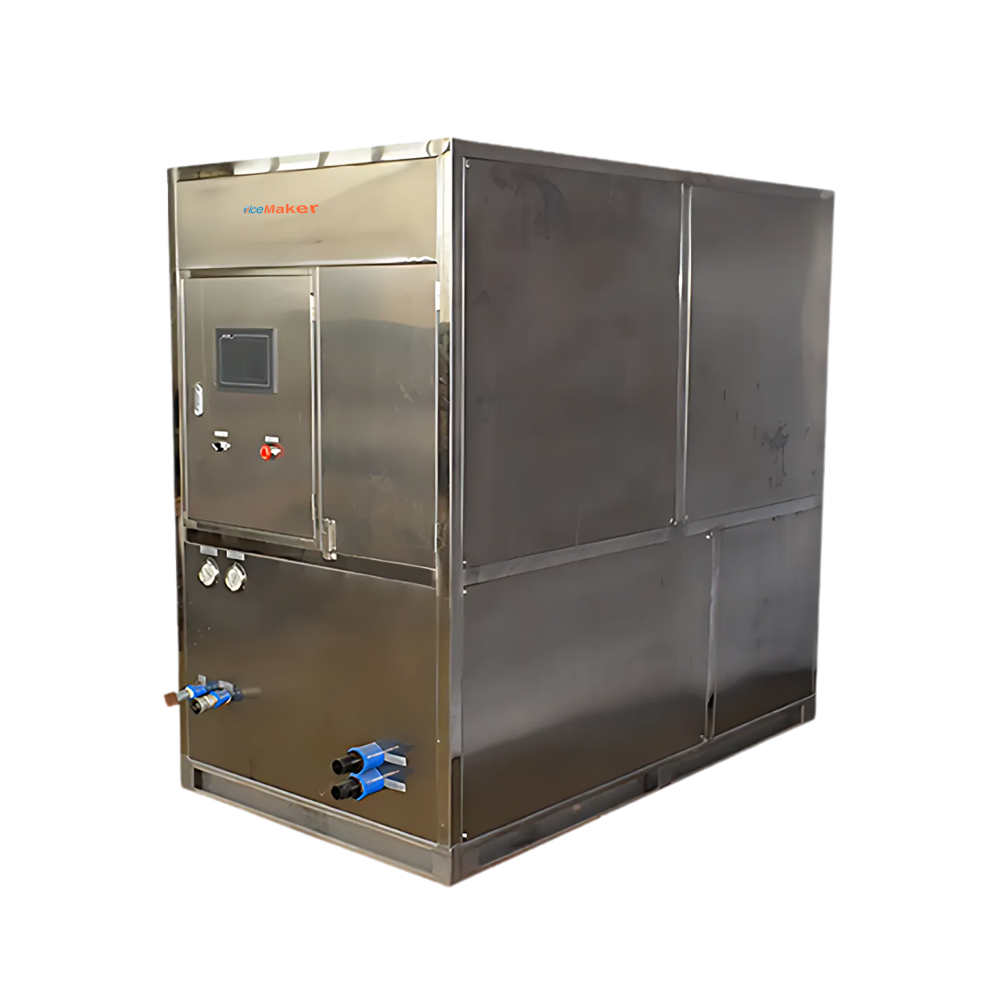

Cube Ice Maker CUIM-B31 produces 1 ton of crystal-clear ice cubes daily, ensuring a consistent and reliable supply. It operates at an evaporative temperature of -10°C and a condenser temperature of 40°C, ensuring optimized freezing performance and maximum efficiency. It features an advanced cooling system with R22 refrigerant for fast and efficient ice formation. Our ice maker features a PLC micro-computer control system for automated operation and precise monitoring.
Specifications
| Daily Production | 1T/24h |
|---|---|
| Noise Level | 55 dB |
| Refrigerant Type | R404a |
| Evaporative Temperature | -10℃ |
| Condenser Temperature | 40℃ |
| Necessary Cooling Capacity | 8.88 KW |
| Ambient Temperature | 25℃ |
| Water Inlet Temperature | 20℃ |
| Compressor Capacity | 3.92 KW |
| Cooling Fan Power | 0.18 KW |
| Water Pump Power | 1.1 KW |
| Power of Circulating Water Pump | 0.55 KW |
| Control System | PLC Micro-computer Control System |
| Cube Ice Weight Density | 500 to 550 kg/m³ |
| Power Consumption | 8 KW |
| Ice Machine Dimension (mm) | 1800 × 1000 × 1600 mm |
| Size of Ice Cube | 29 × 29 × 22 mm; 22 × 22 × 22 mm |
| Weight | 600 kg |
Features
Durable Construction
Energy-Efficient Operation
Rapid Freezing Cycle
Low Noise Operation
Applications
Cube Ice Maker is used in the Food and Beverage Industry, Medical and Healthcare Facilities, Chemical and Pharmaceutical Industries, and Laboratories.
Our Cube Ice Maker produces crystal-clear, uniform ice cubes designed to meet the demands of commercial, industrial, and residential settings. They feature advanced cooling technology and energy-efficient compressors, ensuring rapid freezing with minimal power consumption. These are built with high-quality stainless steel ensures durability, corrosion resistance, and long-lasting performance. These are equipped with eco-friendly refrigerants and insulated storage bins ensuring functionality and sustainability. Our Cube Ice Maker offer compact, under-counter, and versatile designs for seamless integration. Certified to the highest industry standards, including ISO 9001:2015, CE, NSF/ANSI, FDA, and ENERGY STAR, these ice makers guarantee safe, reliable, and energy-efficient operation.
