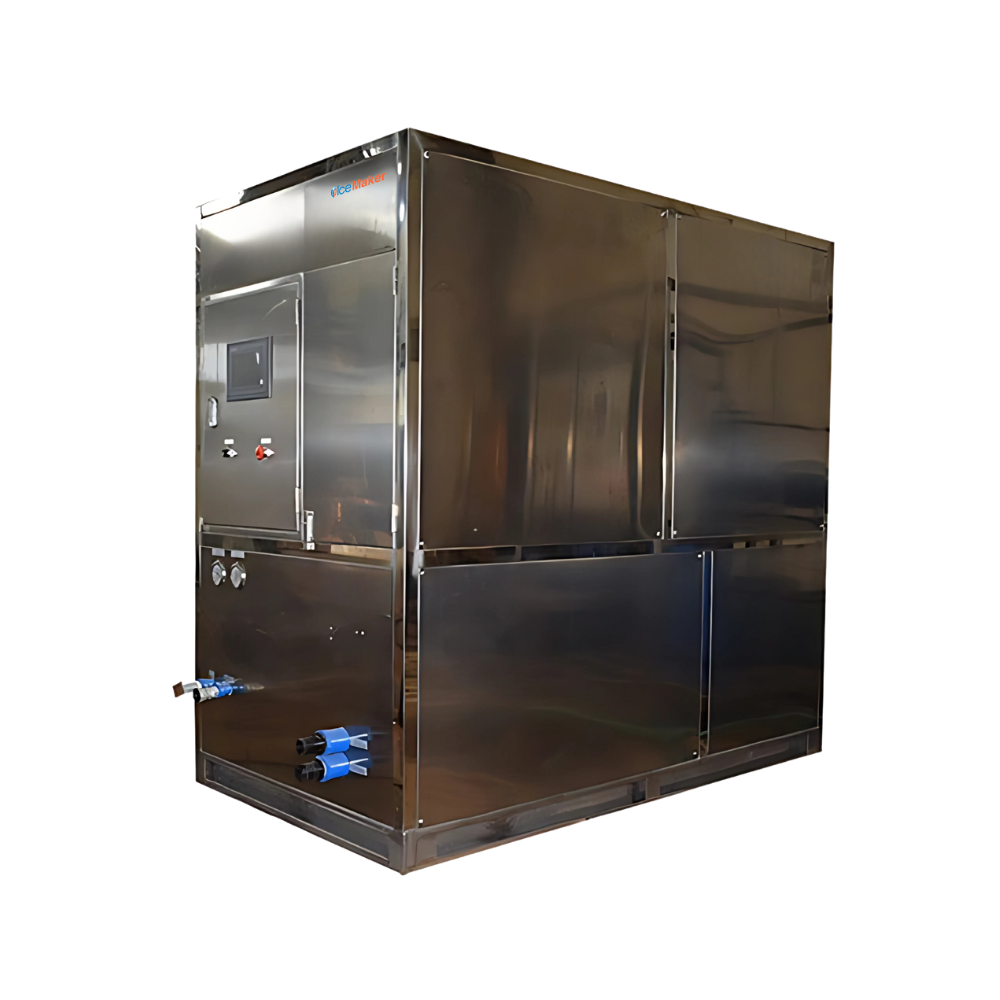

Cube Ice Maker CUIM-B32 is a high-performance unit designed for efficient and consistent ice production, making it ideal for commercial applications. It operates at an evaporative temperature of -10°C and a condenser temperature of 40°C, ensuring optimal performance. It has a high production capacity, producing 2T of cube ice daily to ensure a steady supply. It is integrated with an LCD control panel for precise operation.
Specifications
| Daily Production | 2T/24h |
|---|---|
| Noise Level | 55 dB |
| Refrigerant Type | R404a |
| Evaporative Temperature | -10℃ |
| Condenser Temperature | 40℃ |
| Necessary Cooling Capacity | 18.84 KW |
| Ambient Temperature | 25℃ |
| Water Inlet Temperature | 20℃ |
| Compressor Capacity | 7.11 KW |
| Cooling Fan Power | 0.37 KW |
| Water Pump Power | 1.5 KW |
| Power of Circulating Water Pump | 2.2 KW |
| Control System | PLC Micro-computer Control System |
| Cube Ice Weight Density | 500 to 550 kg/m³ |
| Power Consumption | 8 KW |
| Ice Machine Dimension (mm) | 1680 × 1460 × 2000 mm |
| Size of Ice Cube | 29 × 29 × 22 mm; 22 × 22 × 22 mm |
| Weight | 950 kg |
Features
Stainless Steel Construction
Energy-Efficient Operation
Rapid Freezing Cycle
Low Noise Operation
Compact Design
Applications
Cube Ice Maker is used in the Food and Beverage Industry, Medical and Healthcare Facilities, Chemical and Pharmaceutical Industries, and Laboratories.
Our Cube Ice Maker produces crystal-clear, uniform ice cubes designed to meet the demands of commercial, industrial, and residential settings. They feature advanced cooling technology and energy-efficient compressors, ensuring rapid freezing with minimal power consumption. These are built with high-quality stainless steel ensures durability, corrosion resistance, and long-lasting performance. These are equipped with eco-friendly refrigerants and insulated storage bins ensuring functionality and sustainability. Our Cube Ice Maker offer compact, under-counter, and versatile designs for seamless integration. Certified to the highest industry standards, including ISO 9001:2015, CE, NSF/ANSI, FDA, and ENERGY STAR, these ice makers guarantee safe, reliable, and energy-efficient operation.
